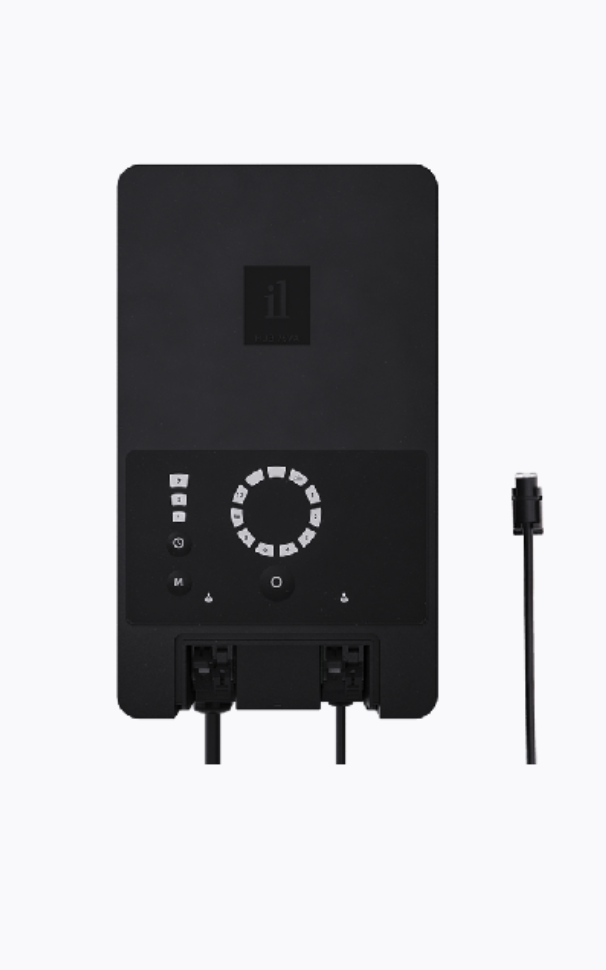

IN-LITE HUB-75 Transformer

This is particularly useful for a simple and straightforward JapanGarden lighting system.

The HUB-75 converts mains electricity to 12V low voltage and has a maximum combined load of 75VA. It provides two 12V cable outlets, with each line capable of up to 80m when using the larger 10/2 cable. It also incorporates a light sensor and timer function.

The in-lite® HUB transformers don't just supply 12v power to the system, they also control the lighting automatically. They do this using the provided light sensor that detects when it is dark and sends a signal to the transformer to turn on the lighting. Using the push-button display on the front of the transformer, you can adjust how many hours the lighting stays on for after the initial signal from the light sensor is received. For example, if you want your lighting to stay on for 3 hours after the sun goes down, select the "3" option on the display. The light sensor is wired in by default and just needs mounting in an area nearby where it is not affected by artificial light. The distance between the sensor and transformer can be extended using the in-lite® CBL-EXT CORD extension cables. Multiple transformers can be connected to the same light sensor through the use of the SPLITTER accessory.

Dimensions: approximately 125 × 75 × 225mm.

Important: the HUB-75 is IP23 and should be installed under cover; the HUB PROTECTOR 1 is required where additional weather protection is necessary.

Information and pricing on the Hub-50 and Hub-100 is available but these are being superseded by the Smart Hub Systems giving greater control.
